How to remove the emissions systems and install a block off plate on the Yamaha R3 / MT-03

by Norton Racing / 2015, August 16 / Published in Yamaha R3 / MT-03

This post will cover how to remove the air injection system and charcoal canister from the Yamaha R3 using my removal kit with blockoff plate.

If you will be tuning the Yamaha R3 using an O2 sensor, you will have to bypass or remove the clean air injection system first in order to get proper AFR readings.  This is the system that injects clean air from the airbox into the exhaust ports to help burn excess fuel and lower emissions.

I will also cover removal of the closed loop vent system and charcoal canister to drop weight on race bikes.  This system connects a closed loop from the fuel tank vent, through a charcoal canister, then back into the throttle bodies to prevent evaporated fuel from entering the atmosphere.

*NOTE*  This charcoal canister system has no negative effect on street bikes, and there is no reason to remove it.  Please help reduce pollution and only remove this system from race bikes.

Removing all of this extra crap for racing drops about 2 lbs, although you add a few ounces back with the new block off plate.

IMG_3669



The air injection system and block off plate install can be done by only removing the fuel tank, but it is easiest to do everything with the side fairings and fuel tank off the bike.  I’m assuming if you are building a race bike, you have already removed the fairings, but if not, follow the step by step directions here to remove the side fairings:

How to remove the side fairings from the Yamaha R3

And follow the step by step directions here to remove the fuel tank:

How to remove the gas tank from the Yamaha R3

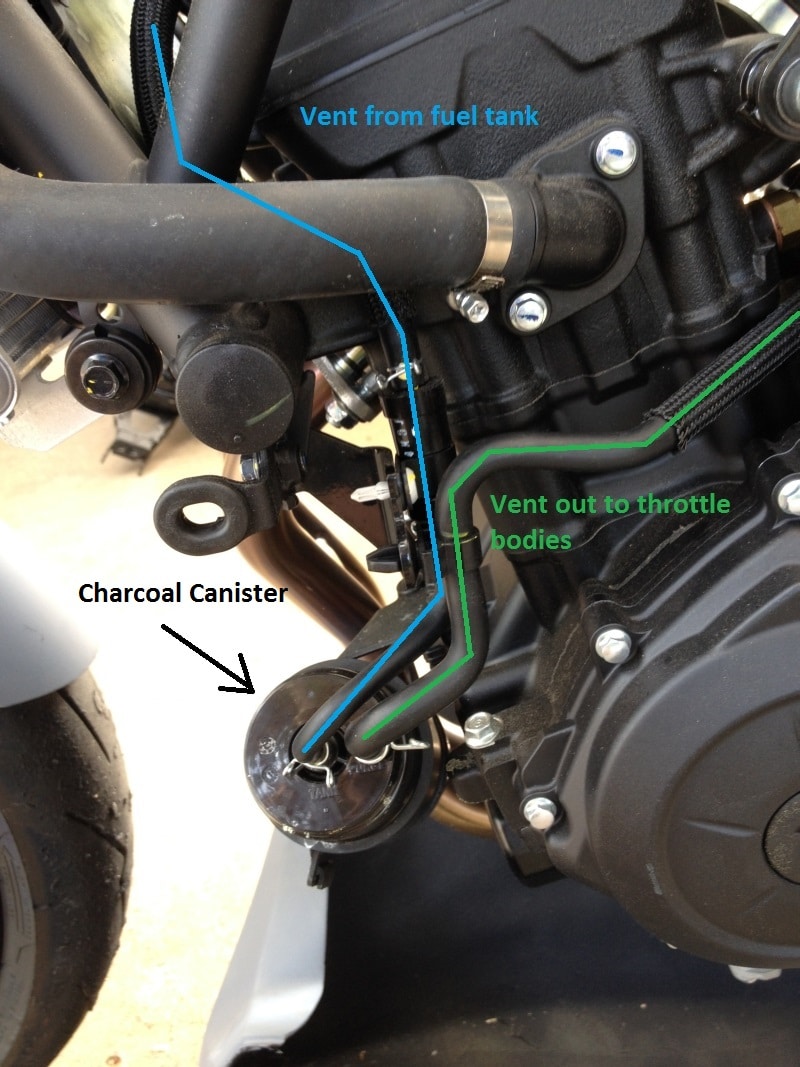

Once you have the bike naked, the charcoal canister and air injection systems are easy to access and remove.  Here are some pictures so you can identify everything I will be talking about.  When you lift off the fuel tank, you will be left with 2 hoses.  The smaller hose runs down the side of the engine and connects to the charcoal canister (marked in blue) and the larger hose is the overfill drain (marked in red) and runs down the other side of the bike and drains out the bottom.  You can follow the vent hose (blue) down to the charcoal canister, and you’ll see another hose (green) that runs out of the charcoal canister and splits into both throttle bodies.  The hose in purple is the air injection system and connects from the air box to the air pump and plugs into the port on the exhaust manifold (purple).

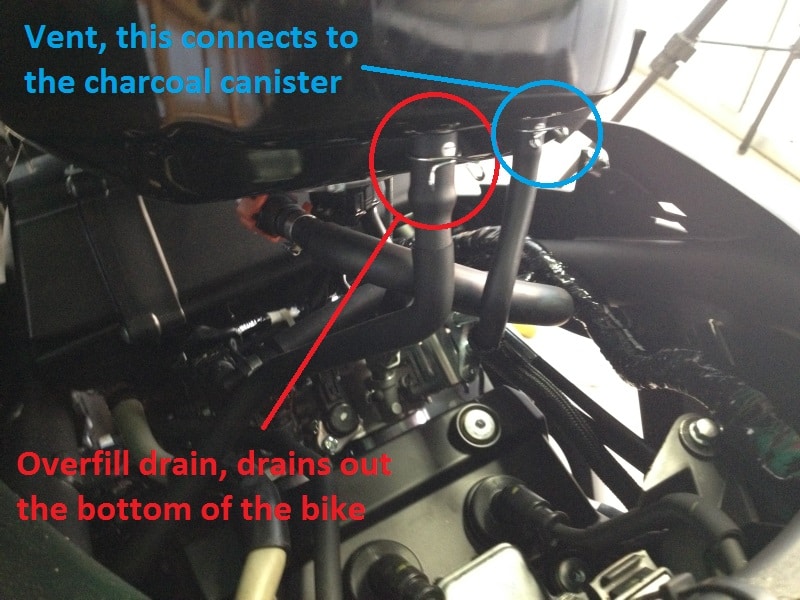

01 IMG_0188

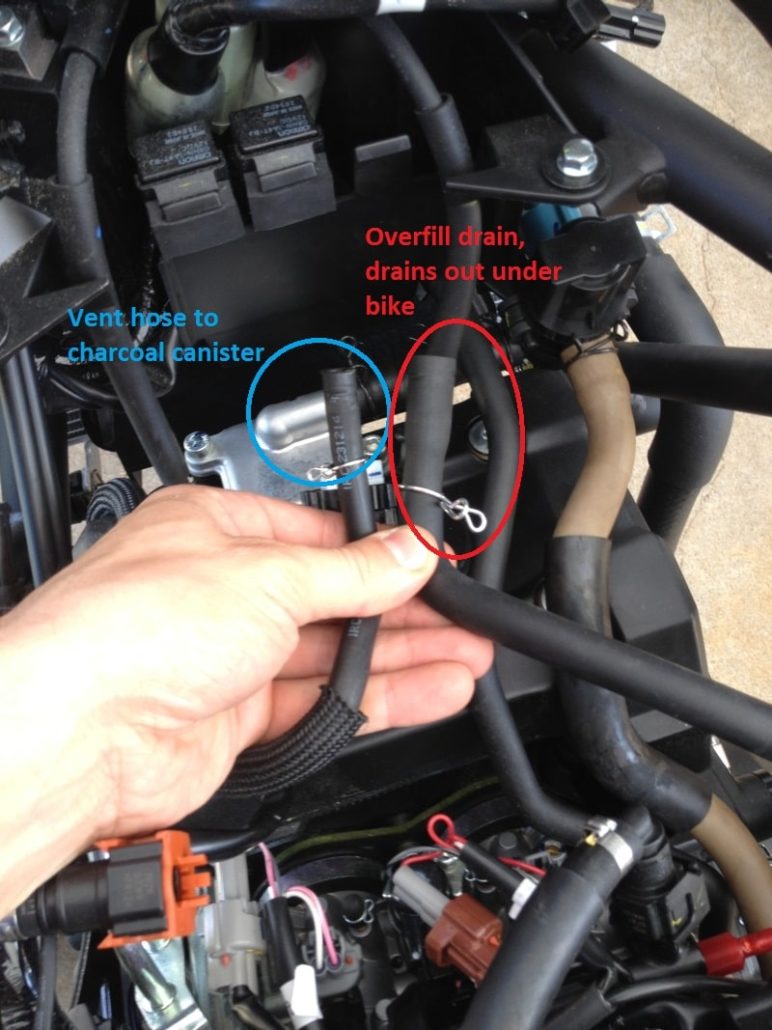

02 IMG_3483

03 IMG_3484

04 IMG_3487

05 IMG_3488

06 IMG_3494

07 IMG_3493b





Air Injection System Removal and Smog Block Off Plate Install

Tools Needed:
Some pliers to help get all the hose clamps off
5mm allen wrench
Phillips head screwdriver
a small pick or flat blade screwdriver to release some clips and pry out connectors
YamahaR3Racing.com smog block off kit

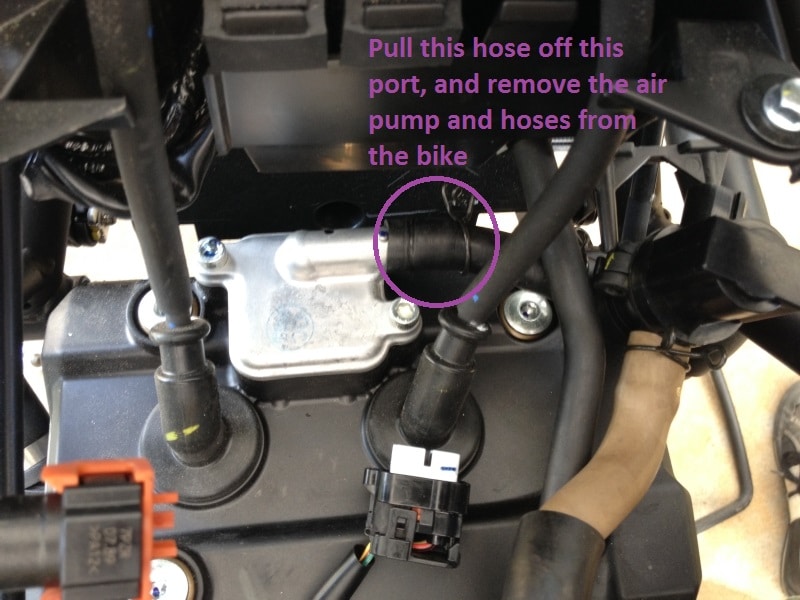

Step 1:  Locate the hose coming out of the air box (purple).  Squeeze the hose clamp and pull the hose off the port on the air box.  Cap this port with our supplied 1/2″ rubber vacuum cap and reuse the stock hose clamp.  If you don’t have a 1/2″ vacuum cap, you can cut a short length of the hose, fold it back on itself, and zip tie it to seal the port.  Please note, I posted pictures of both methods, you will only use one method 🙂

08 IMG_3493

block off plate and smog removal kit circle 1    11 IMG_3617

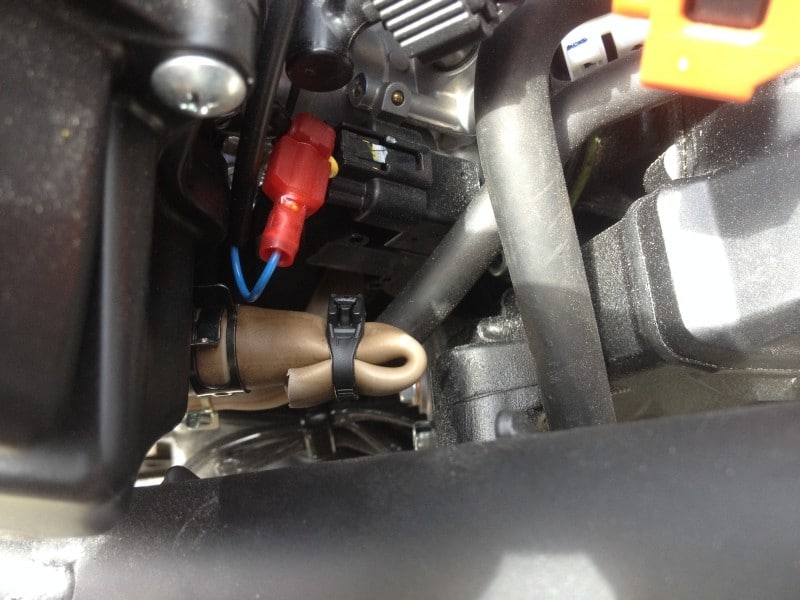

12 IMG_3613

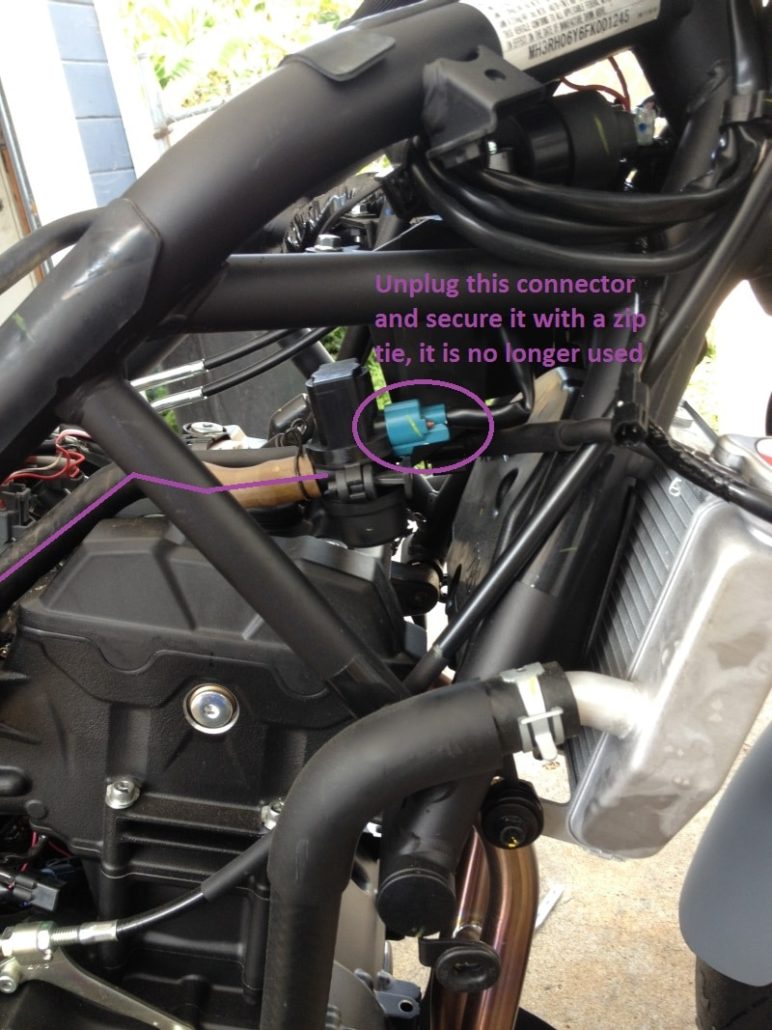

Step 2:  Unplug the connector from the pump and zip tie off to something to secure it, you won’t be using it for anything.  Pull the air pump free from the tabs and pull the hose off the plate on the exhaust port and remove the hoses and pump from the bike.

13 IMG_3490

14 IMG_3492

14 IMG_3494_2 15 IMG_3496



Step 3:  Use a 5mm allen wrench to remove the 2 bolts in the exhaust port cover and remove the cover.  Then use a small pick or flat blade screwdriver to press through one of the reed valves and pry the valve assembly out.  Don’t try to pry the assembly out from the edge, you may damage the gasket.  Remove the two baskets located under the valves.  DO NOT DAMAGE THE GASKET!!!  YOU HAVE TO REUSE IT!!!

17 IMG_3494_3 18 IMG_3499 19 IMG_3500 20 IMG_3501 21 IMG_3609 21 IMG_3502

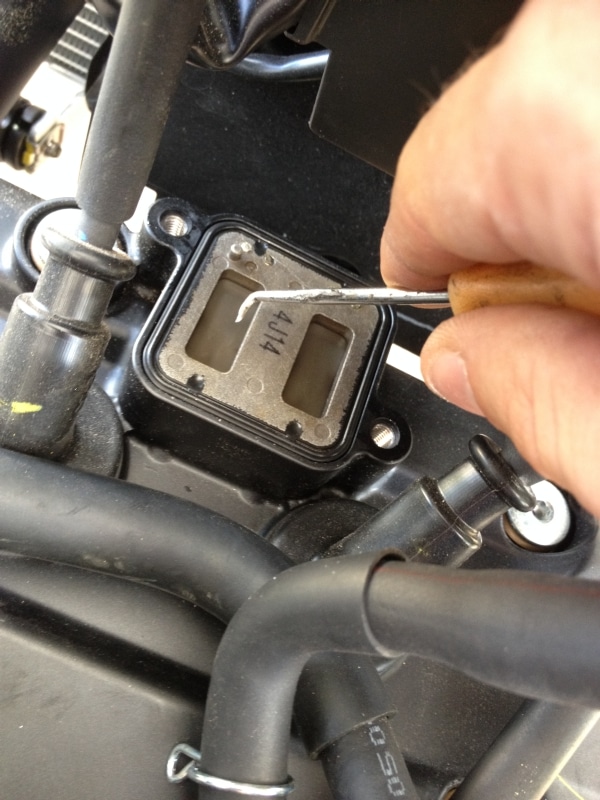

Step 4:  Use a Phillips screwdriver to take the reed valves out of the gasket block.  Then place the gasket block back into the exhaust port with the small boss in the corner to the front left side of the motorcycle.

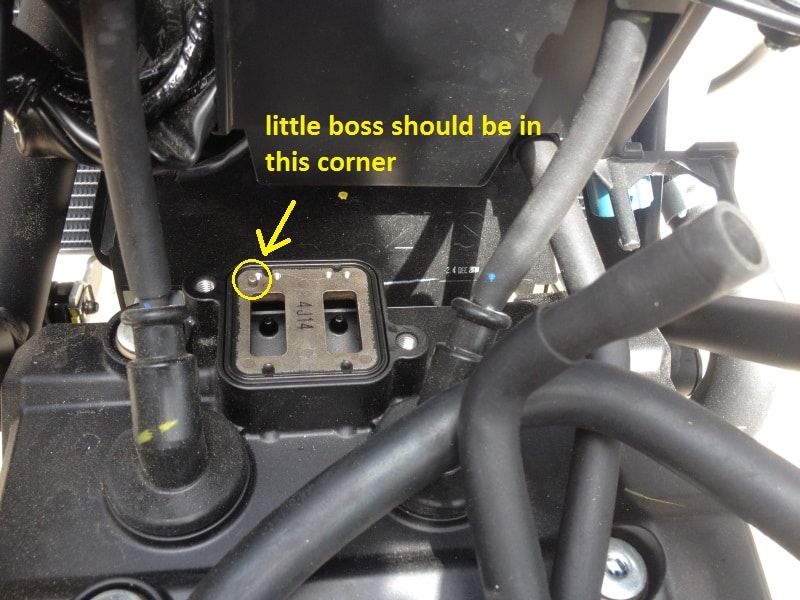

23 IMG_3503 24 IMG_3610

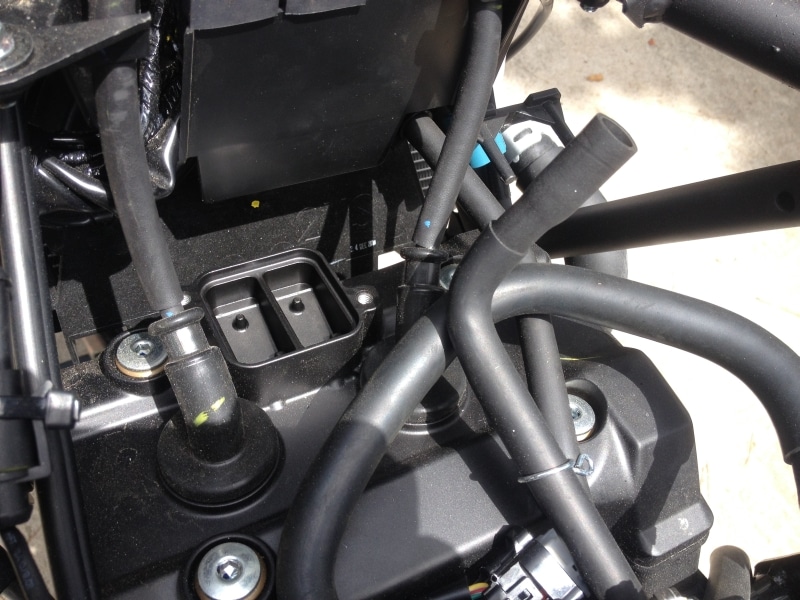

Step 5:  Place the block off plate over the gasket so the cutout in the back corner of the block off plate goes over the little boss sticking up out of the gasket block, then tighten the bolts.  That’s it, you’re done!

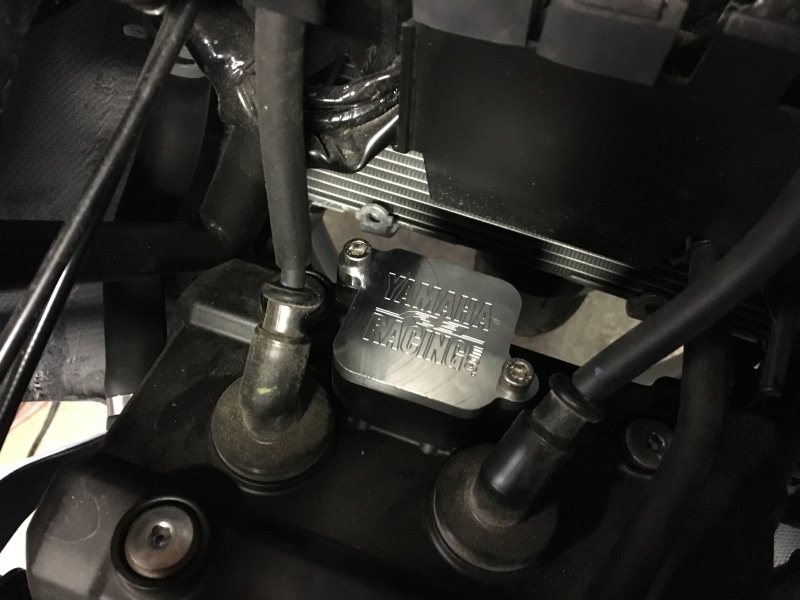

IMG_4510   IMG_4511 IMG_4512



Charcoal Canister and Vent Hose Removal

Tools Needed:
Some pliers to help get all the hose clamps off
8mm socket
10mm socket
a small pick or flat blade screwdriver to release some clips and pry out connectors

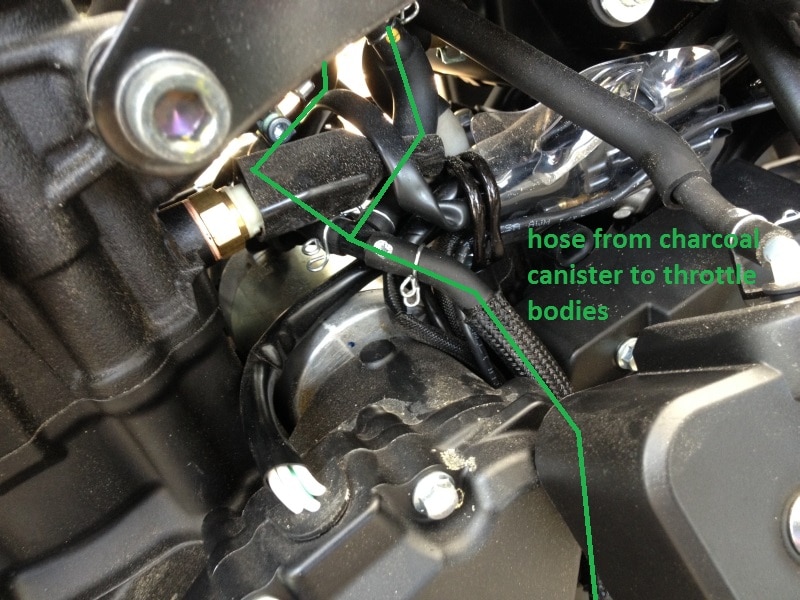

Step 1:  The first step is to remove the hose that has a T split and goes to both throttle bodies and cap off the 2 ports on the throttle bodies with the two 3/16″ vacuum caps supplied in my kit and reusing the 2 OEM clamps.  However, if you don’t have vacuum caps, it’s easier to only remove part of this hose and just fold and zip tie the hose to cap it off.  So the first four pictures are for removing the hose and installing vacuum caps, the last two pics show the hose capped off at the T split with a zip tie.  You could also make your own vacuum caps by cutting 2 small pieces of hose, folding them over, and zip tying them in half.

IMG_3487 IMG_3640

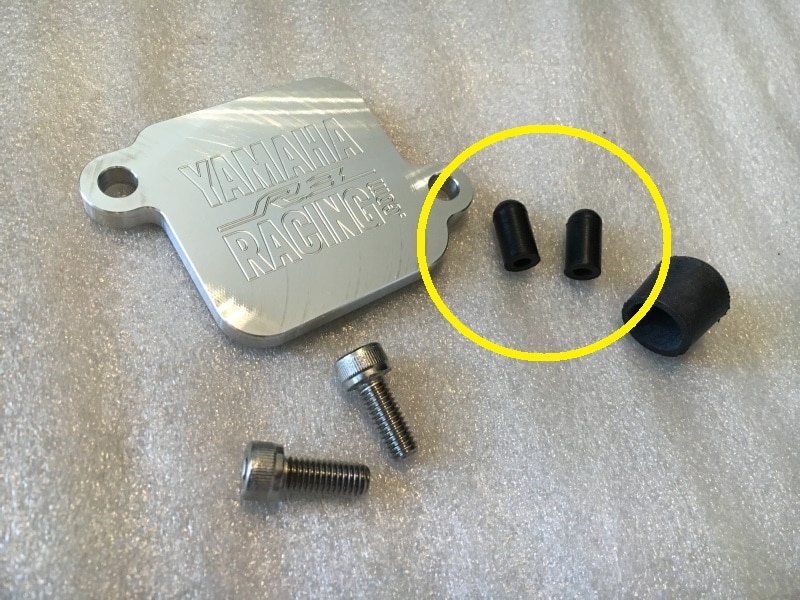

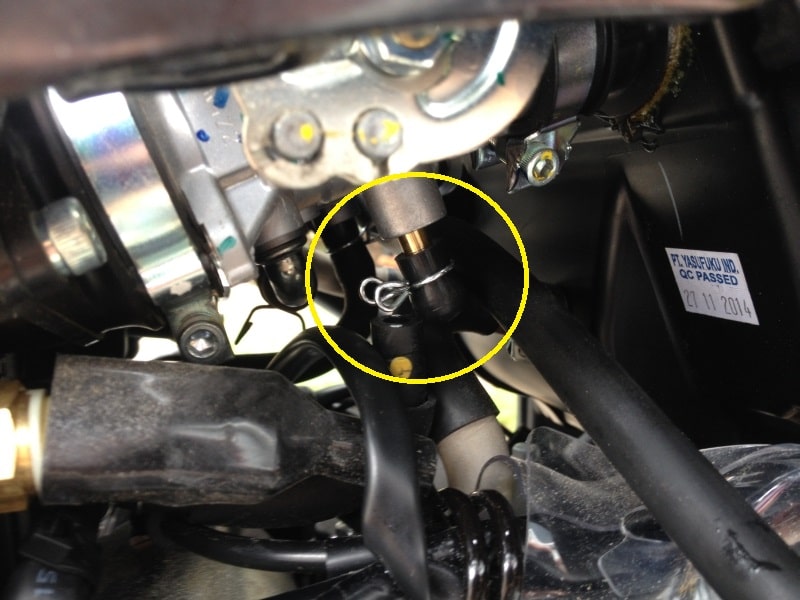

block off plate and smog removal kit circle 2 IMG_3641 IMG_3642

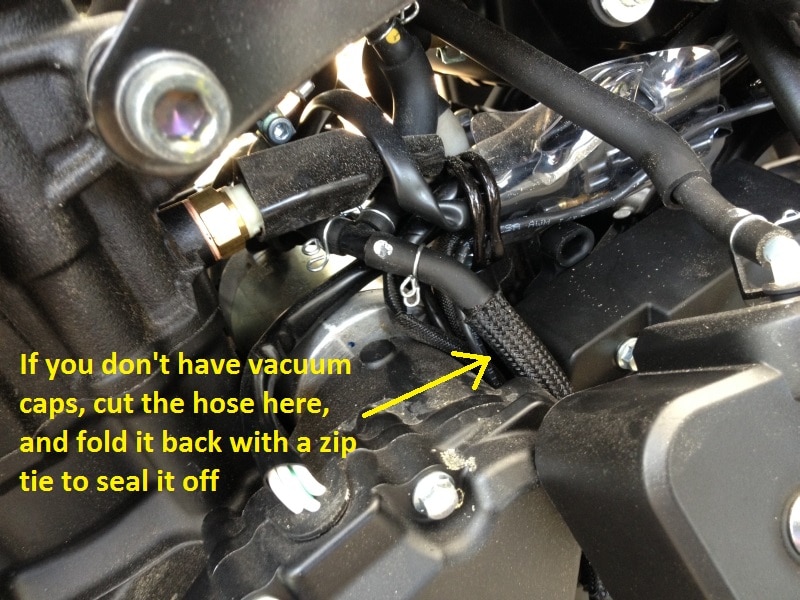

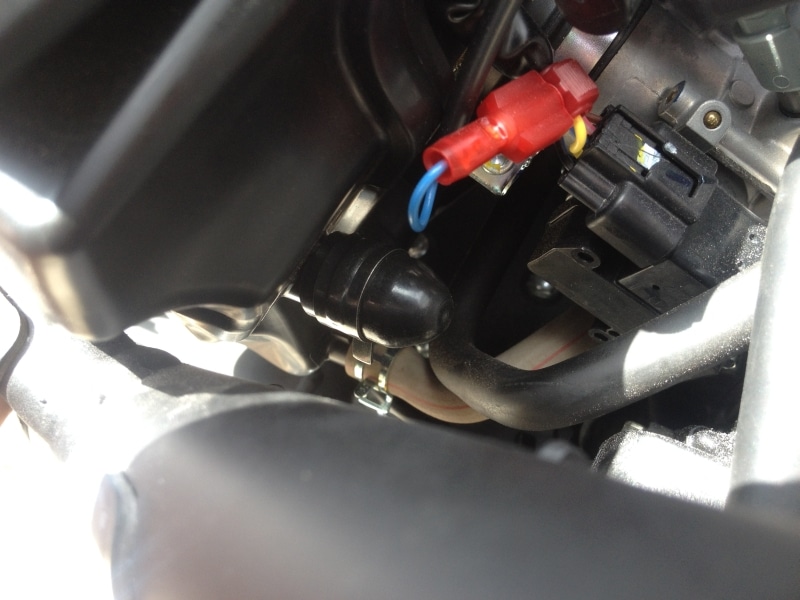

If you don’t have vacuum caps, cut off the hose as seen in this picture, fold it back and zip tie it to seal off the line.

IMG_3487_2 IMG_3619

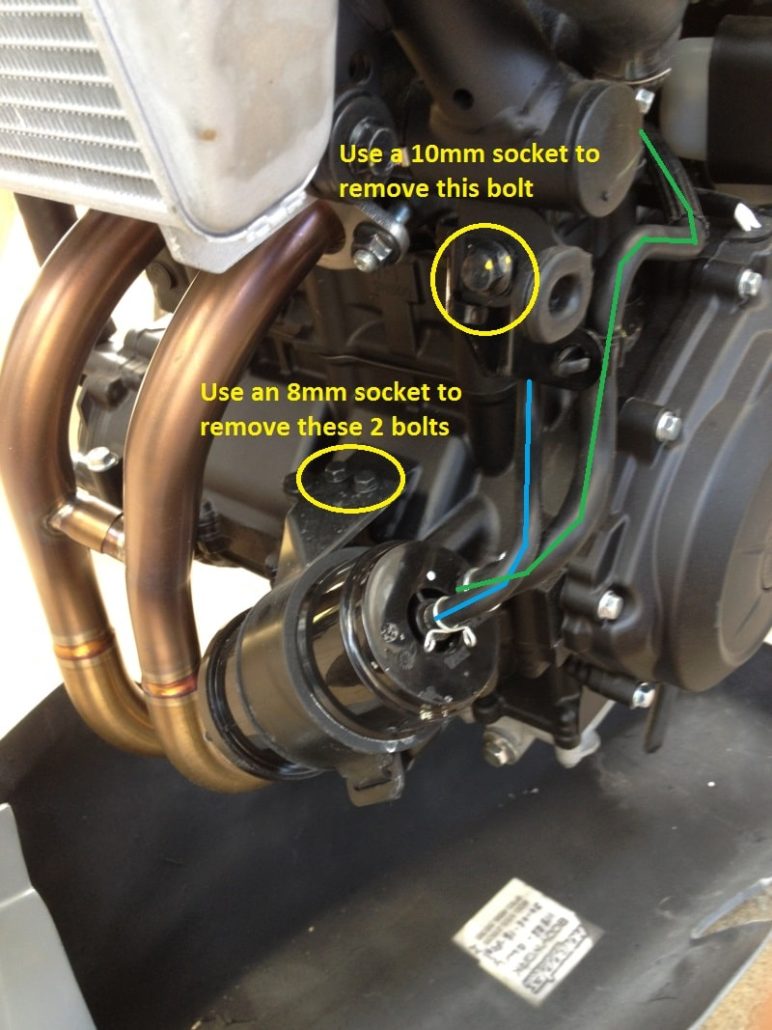

Step 2:  Use a 10mm socket to remove the bolt securing the hoses at the top of the canister, and an 8mm socket to remove the two bolts securing the canister to the front of the motor, and remove the canister and attached hoses from the bike.

IMG_3486 IMG_3498



The last steps are sort of personal preference.  I prefer to just leave the vent on the bottom of the gas tank open, I see no advantage to routing it somewhere else.  The overflow drain currently runs down under the bike (hose marked in red).  I chose to shorten mine and just route it through the existing clip on the side of the bike and remove half the hose.  You can safely remove this hose altogether if you don’t care about overflow gas pouring on top of the engine, or you can leave it routed under the bike so overflow gas flows out the bottom into your belly pan.

05 IMG_3488 IMG_3489    IMG_3495_ IMG_3644

  • Tweet

About Norton Racing

What you can read next

How to remove the tail and taillight of the Yamaha R3
How to remove the fuel tank from the yamaha R3
How to remove the gas tank from the Yamaha R3
how to remove the windscreen yamaha r3
How to remove the windscreen and upper fairing from the Yamaha R3

16 Comments to “ How to remove the emissions systems and install a block off plate on the Yamaha R3 / MT-03”

  1. R3 Fanboy says :Log in to Reply
    October 15, 2015 at 8:47 AM

    Great job jbluetooth! very detailed and informative video. I’m thinking of doing this mod but I’m curious of knowing if this removal will throw any weird engine lights or codes?
    Thanks again for the info.

    1. jbluetooth@gmail.com says :Log in to Reply
      October 15, 2015 at 7:29 PM

      This mod won’t cause any check engine lights or faults. It won’t affect performance at all. It will drop some weight, quiet some popping sounds in the exhaust, and it will allow you to tune the bike accurately.

      1. R3 Fanboy says :Log in to Reply
        October 15, 2015 at 7:36 PM

        Thanks a lot for the prompt response. Definitely saving this site for all my R3 needs!

  2. Graham Lynch says :Log in to Reply
    December 28, 2016 at 9:57 AM

    Just did this on a 2015 R3 in Canada. My bike doesn’t have a charcoal canister or vent lines from the throttle body. The engine case isn’t even drilled for the canister mount bracket.

  3. Manoel Neto says :Log in to Reply
    January 31, 2017 at 8:07 AM

    do you ship this kit and other things to brazil?
    please say yes 😀

    1. jbluetooth@gmail.com says :Log in to Reply
      February 4, 2017 at 11:20 AM

      Yes I am happy to ship internationally. Please email me with the parts you are interested in and I will get you a quote for shipping. jbluetooth@gmail.com
      thank you!

  4. Matthew says :Log in to Reply
    June 24, 2017 at 5:37 AM

    Could you just put one of those blanking caps over the opening on the standard plate ?

    1. jbluetooth@gmail.com says :Log in to Reply
      June 25, 2017 at 5:15 PM

      Yes, blocking the air opening on the OEM cap will achieve the same thing. You will just have to source all of the necessary vacuum caps.

      1. Matthew says :Log in to Reply
        July 1, 2017 at 12:38 AM

        Okay that makes sense, also would there be any negative effects of blocking it and sill having the standard tune? (With a full akrapovic exhaust system installed)
        Thanks

        1. jbluetooth@gmail.com says :Log in to Reply
          August 10, 2017 at 4:02 PM

          no it won’t change the way the bike runs, only increase emissions

  5. cristian alfredo bereciartua serpa says :Log in to Reply
    February 10, 2018 at 5:42 PM

    Hey Jesse my r3 doesnt hace the charcoal canister.. it’s okay? It’s 2017 ABS

    1. Jesse Norton says :Log in to Reply
      February 13, 2018 at 11:32 AM

      That’s no problem, I think only USA bikes have it.

  6. T K says :Log in to Reply
    April 18, 2018 at 3:01 PM

    Hey Jesse,

    On the tank where the charcoal canister used to have the vac line, do you just leave that open?

    Thanks

    1. Jesse Norton says :Log in to Reply
      October 5, 2019 at 6:53 PM

      You can just leave it open, yes, it’s just a vent to the outside.

  7. Herby says :Log in to Reply
    July 4, 2018 at 9:14 PM

    Why do the reed valves need to be removed if it will be blocked anyway?

    1. Jesse Norton says :Log in to Reply
      July 18, 2018 at 2:45 PM

      You don’t, but part of the point of this is to remove extra weight that isn’t necessary, so the reed valves are extra at this point.

You must be logged in to post a comment.

Search All Posts

Post Category:

Yamaha R3 / MT-03
  • ** Yamaha R3 / MT-03 Critical Issues
  • *** Top 5 Yamaha R3 / MT-03 Mods and Upgrades
  • Annitori Quickshifter QS Pro installed and beta tested on Yamaha R3
  • Dyno tested: 520 vs. 415 chain and sprockets – Yamaha R3
  • How to bleed the brakes or flush the brake fluid on the Yamaha R3 / MT-03
  • How to change the front brake pads on the Yamaha R3 / MT-03
  • How to change the Yamaha R3 / MT-03 to GP Shift
  • How to do an oil and filter change on the Yamaha R3 / MT-03
  • How to get more dash clearance for your clipons and brake line – Yamaha R3
  • How to install a BMC Race Air Filter in the Yamaha R3 / MT-03
  • How to install a stainless steel braided front brake line on the Yamaha R3 / MT-03
  • How to install a Yoyodyne slipper clutch in the Yamaha R3 / MT-03
  • How to install aftermarket clipons on the Yamaha R3 / MT-03
  • How to Install Hotbodies Race Bodywork on the Yamaha R3
  • How to install the Traxxion Dynamics Fork Damper Rod kit with Cartridge Emulators in the Yamaha R3 2015-2018
  • How to remove the emissions systems and install a block off plate on the Yamaha R3 / MT-03
  • How to remove the front wheel from the Yamaha R3 / MT-03
  • How to remove the gas tank from the Yamaha R3
  • How to remove the kickstand from the Yamaha R3
  • How to remove the rear wheel from the Yamaha R3 / MT-03
  • How to remove the side fairings from the Yamaha R3
  • How to remove the tail and taillight of the Yamaha R3
  • How to remove the windscreen and upper fairing from the Yamaha R3
  • How to replace the fork seals on the Yamaha R3
  • Installed: Hotbodies Color Form Race Bodywork – Yamaha R3 2015-2018
  • Lightweight Rear Brake Rotor for Yamaha R3
  • Paint is done, heading to 5zero4 Designs next weekend to install the graphics
  • Suspension Spring Rate Chart for Yamaha R3 / MT-03
  • What are the best clipons for the Yamaha R3?
  • What are the best rearsets for the Yamaha R3?
  • Yamaha R3 / MT03 Exhaust Dyno Test and Superbike Build
  • Yamaha R3 OEM exhaust weight, headers, muffler, slip-on, heat shield

Contact Information

Email: sales@norton-motorsports.com
Telephone: (858) 842-4595

Address

Norton Motorsports
San Diego, CA

Contact us for address before sending anything.

Thank you.

© Copyright Norton Motorsports. All rights reserved.

TOP
