*a pick tool makes unplugging connectors much easier
Remove reflector by unscrewing it from the threaded stud. Then remove the stud with a 10mm socket.

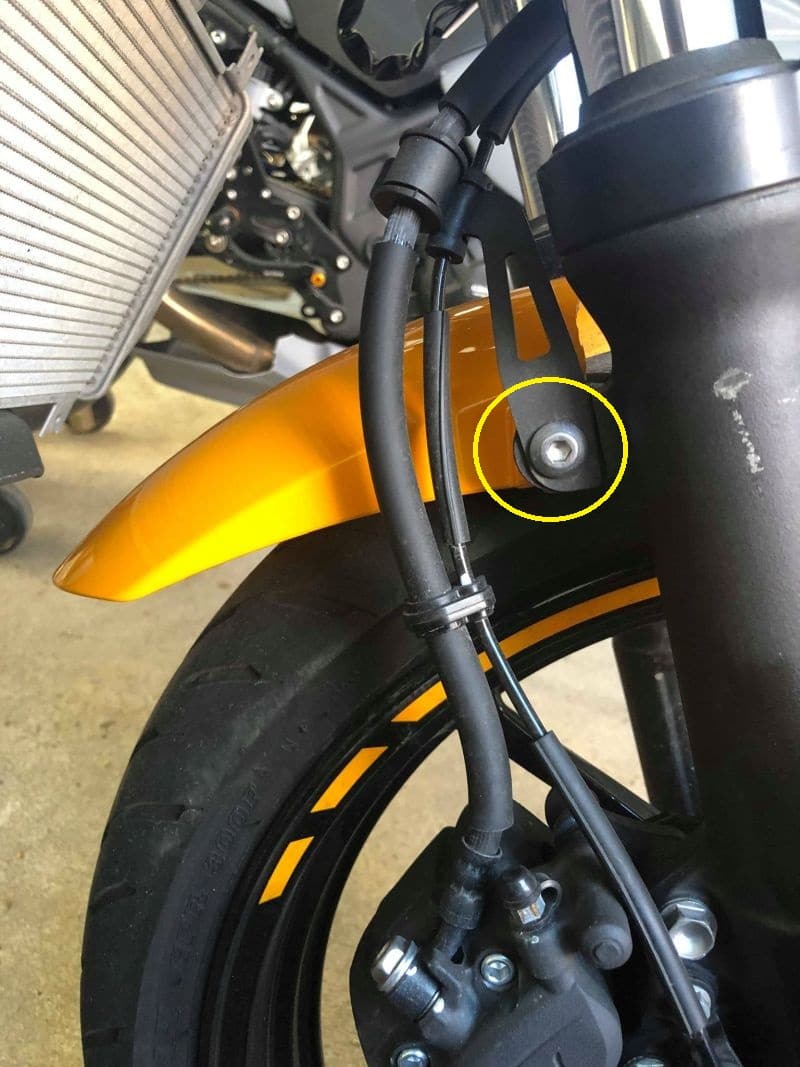

Remove the bolts located behind the forks
After Bolts have been removed lift and pull out the front fender
You have now successfully removed the front fender.
First remove the rear seat using the key.

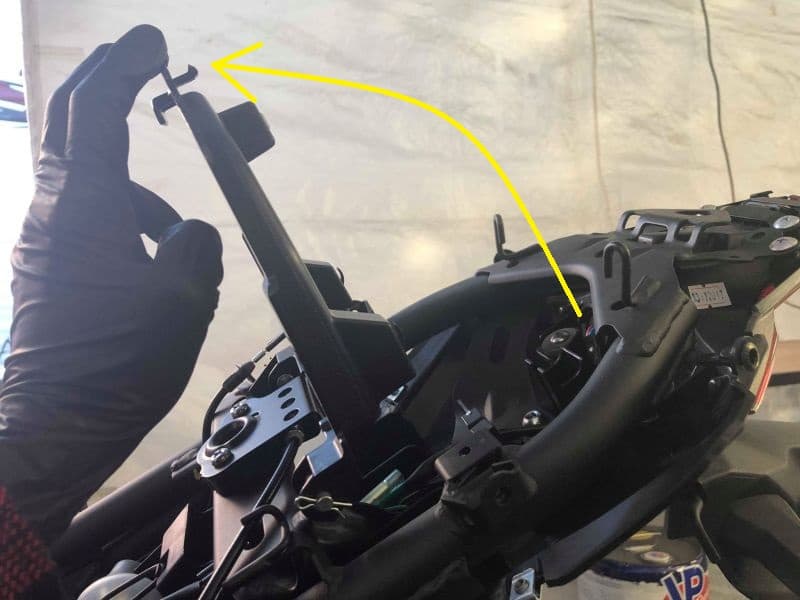

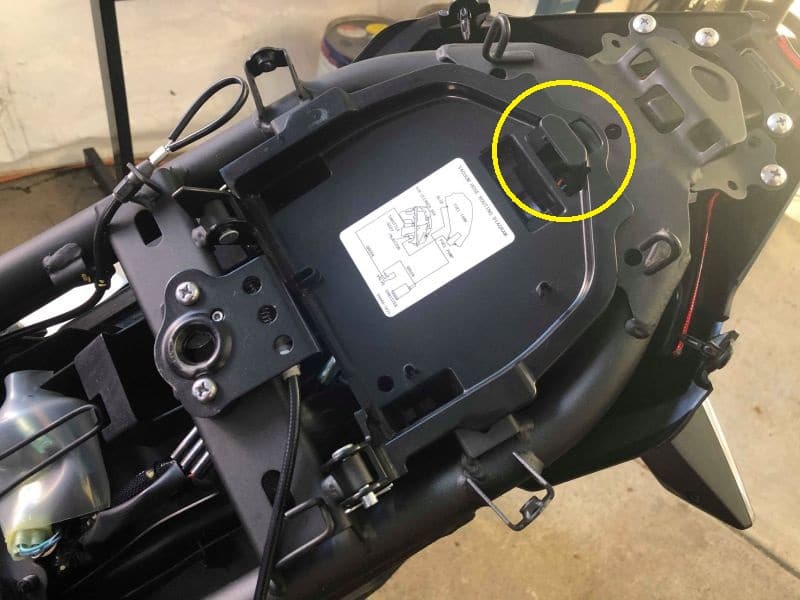

Then pull up on the rear tab on the storage tray under the seat:

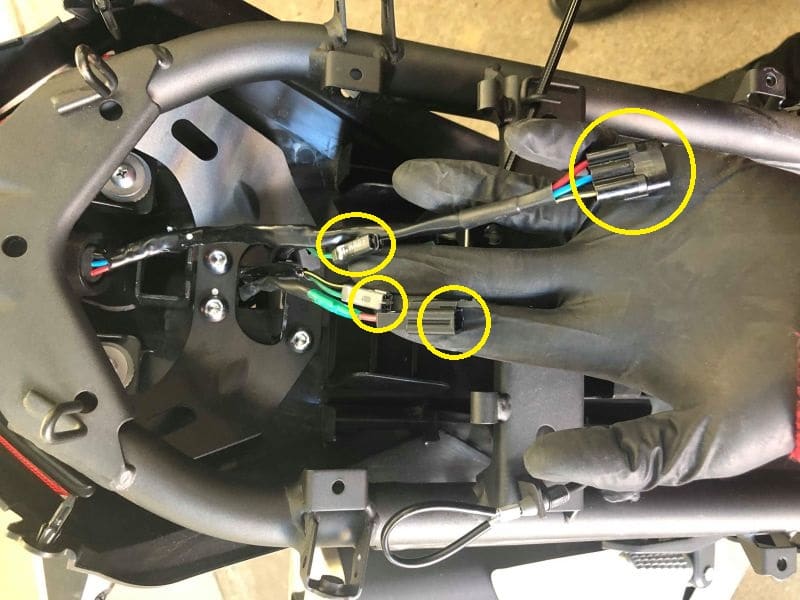

Unplug the turn signals, tail light, and license plate light wires:

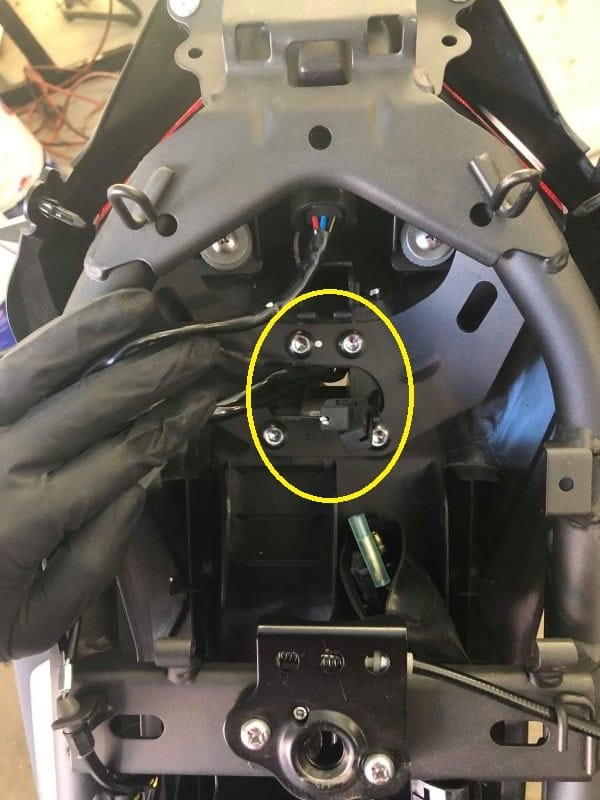

Remove the 4 bolts holding the rear fender:
Once all four bolts and wires have been removed the rear fender will come right off.
