Sato Racing V2 ‘Race Concept’ Rearsets – Yamaha R3 / MT-03

MSRP: $520.00

$499.95

FREE SHIPPING on this item!

*The V2 rearsets have a small change where the rear brake lever mounts to increase clearance to the exhaust.  We recommend the V2 for all applications.



Clear

Description

Sato Racing ‘Race Concept’ rearsets are pure, no-compromise racing rear sets designed for track-only bikes.

*The V2 rearsets have a small change where the rear brake lever mounts to increase clearance to the exhaust.  We recommend the V2 for all applications.

These are the rearsets we use on all Team YamahaR3Racing.com bikes and are the only rearsets available with ideal rise for ground clearance.

***These rearsets are highly recommended if you will be using a taller seat or superbike style seat on your Yamaha R3 such as the Hotbodies Racing Race Tank Cover/SBK Seat or Carbonin bodywork.

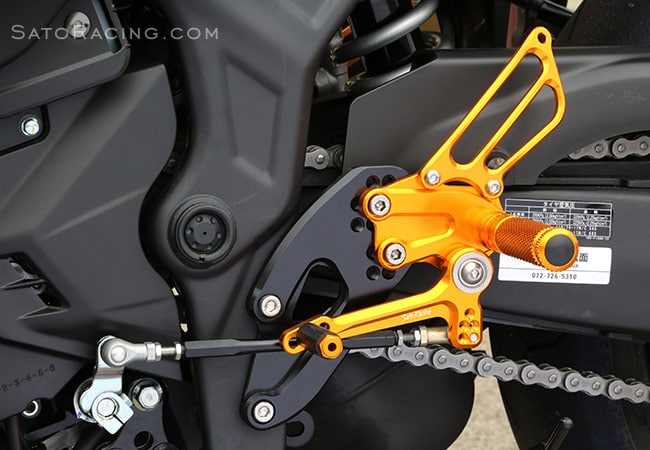

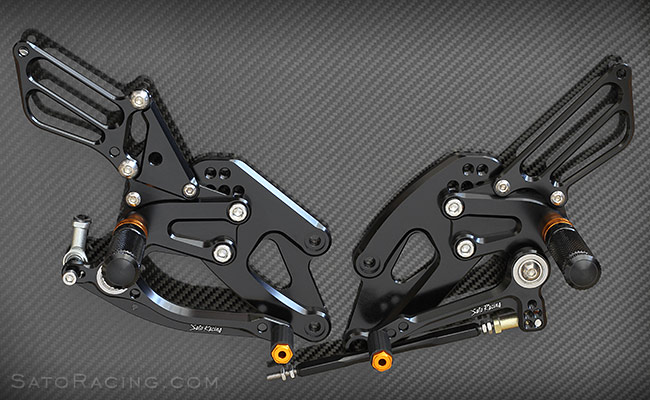

The ‘Race Concept’ Rear Sets for 2015 Yamaha YZF-R3 and YZF-R25 are made from high grade billet aluminum anodized in your choice of all Black with Gold accents, or Gold with Black base plates. The modular base plate design lets you select from 7 adjustable positions that place your feet up to 85mm higher and 70mm further back compared to stock, better to help maximize lean angle during cornering. You can use these Rear Sets with the stock shifting pattern, or switch them to reverse (GP-style) shift patttern.

A rear brake lever return spring is included.

Available Foot Peg Positions, all measurements are in relation to stock position (0 mm):

50mm Back 60mm Up
60mm Back 60mm Up
50mm Back 72.5mm Up
60mm Back 72.5mm Up
70mm Back 72.5mm Up
60mm Back 85mm Up
70mm Back 85mm Up

NOTE: Not recommended for street use. Not compatible with stock brake light switch sensor.  For more ‘street’-friendly rearsets that will fit better using the OEM seat and brake switch, see the standard edition Sato Racing R3 Rearsets.

Additional information

Weight 5 lbs
Dimensions 12 × 9 × 4 in
COLOR

BLACK W/ GOLD ACCENTS, GOLD W/ BLACK BASE PLATES
