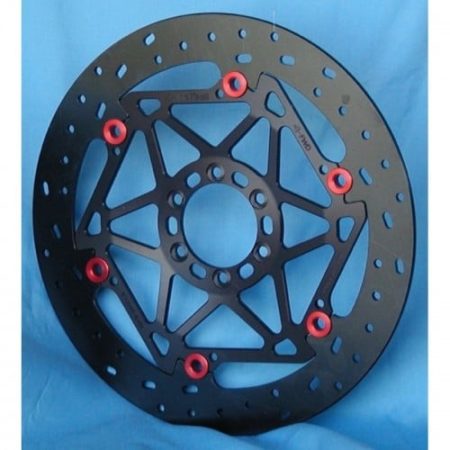

BrakeTech AXIS/Iron Floating Brake Rotor – Kawasaki Ninja 400 / Z400 / 500

MSRP: $369.95 - $379.95


FREE SHIPPING on this item!

We recommend using the Ferodo CPro Carbon/Ceramic Race Pads with AXIS/Iron rotors.




The exclusive BrakeTech AXIS™ series Ductile Iron full-floaters provides a higher coefficient of friction over stainless, with more feel and feedback at the brake lever.  The patented AXIS Design floating system is many times stronger than conventional semi-floating brake rotors.  The heart of this leading edge system has the floater buttons controlling radial and axial float only, they are non load-bearing.  All of the considerable braking forces are channeled through the trademarked Direct-Link architecture, comprising over an 800% increase in surface area load transfer as compared to conventional floating brake rotors…simply far superior by design!

Iron provides a higher coefficient of friction over stainless, with more feel and feedback at the brake lever.  But get them wet – they’re going to rust.  If you’re a fair weather rider, then it’s a non-event and not an issue.  However, if you ride distances where inclement weather is a definite possibility, you’re better off with AXIS/Cobra stainless steel series in the optimized petal design.

The units for the new 400 Ninja are manufactured at a full 5mm thick Supersport spec rather than the thinner spec of the standard rotors, this offers substantially improved performance in terms of both modulation at the lever and overall braking power via greater thermal capacity.


  • Patented AXIS Design – featuring Direct-Link™ load transfer system
  • U.S. Patent No. 6,957,726
  • 50% greater Tensile Strength and Fatigue Strength: Ductile Iron vs Gray Iron
  • CNC machined from billet (continuous cast bar) – not porosity prone gravity cast molds
  • CRYOGENIC treatment for improved wear resistance
  • Greater thermal transfer capability than stainless steel
  • Reduced wear from shear forces – longer rotor life
  • Carriers CNC machined from premium grade billet aluminum bar – not stamped plate
  • Hard-anodized to military grade specifications
  • Made in the U.S.A.
  • Available in 5mm lightweight and 6mm severe duty thicknesses

Rotors should be used with matching Ferodo Racing pads.

Sintered Metal Brake Pads on Iron?

There does indeed exist a universal prohibition against the use of sintered metal pads on generic cast iron rotors, we have the same warning.  But this caveat is more specifically targeted to old-school gray cast iron and particularly of the individual molding, gravity feed casting type.  That combination was and is inherently problematic with a propensity towards suffering from thermal stress induced fracturing.  Not good.

The AXIS/Iron on the other hand is a significantly different animal.  Firstly, it is CNC machined from American made high grade nodular ductile iron, not gray iron.  Secondly, it’s a genuine billet part, sawed from continuous cast bar (which eliminates porosity and the problems associated with that).  Thirdly, it is an inherently stronger material with tensile strength more akin to steel than gray iron.  Plus, besides traditional heat-treat, we also Cryogenically process them to improve their abrasion resistance and reduce wear.  But bear in mind, they are still “softer” than stainless steel, which simply stated means you cannot run any pad you want without the potential for problems developing…

AXIS/Iron Black GunKote: This is a rust inhibiting coating which is thermally bonded on to minimize corrosion.  It must be cleared from the pad sweep area before the rotors become fully functional.  Please click here for the one page instruction guide:  AXIS/Iron Rotor Clearing instructions

Begun back in the mid-90’s, their benchmark Hi-Tech Cryo Treatment is applied to all BrakeTech premium performance rotors.  This -300º below zero computer controlled process is an advanced material enhancement system which alters the matrix composition of the metal at the molecular level.   While improving rotor durability it also maximizes performance on the track with today’s high coefficient of friction brake pad compounds.

Additional information

Weight 2 lbs
Dimensions 13 × 13 × 0.5 in

310mm x 5mm Full Floater, 310mm x 6mm Full Floater
